Premium whole home filtration

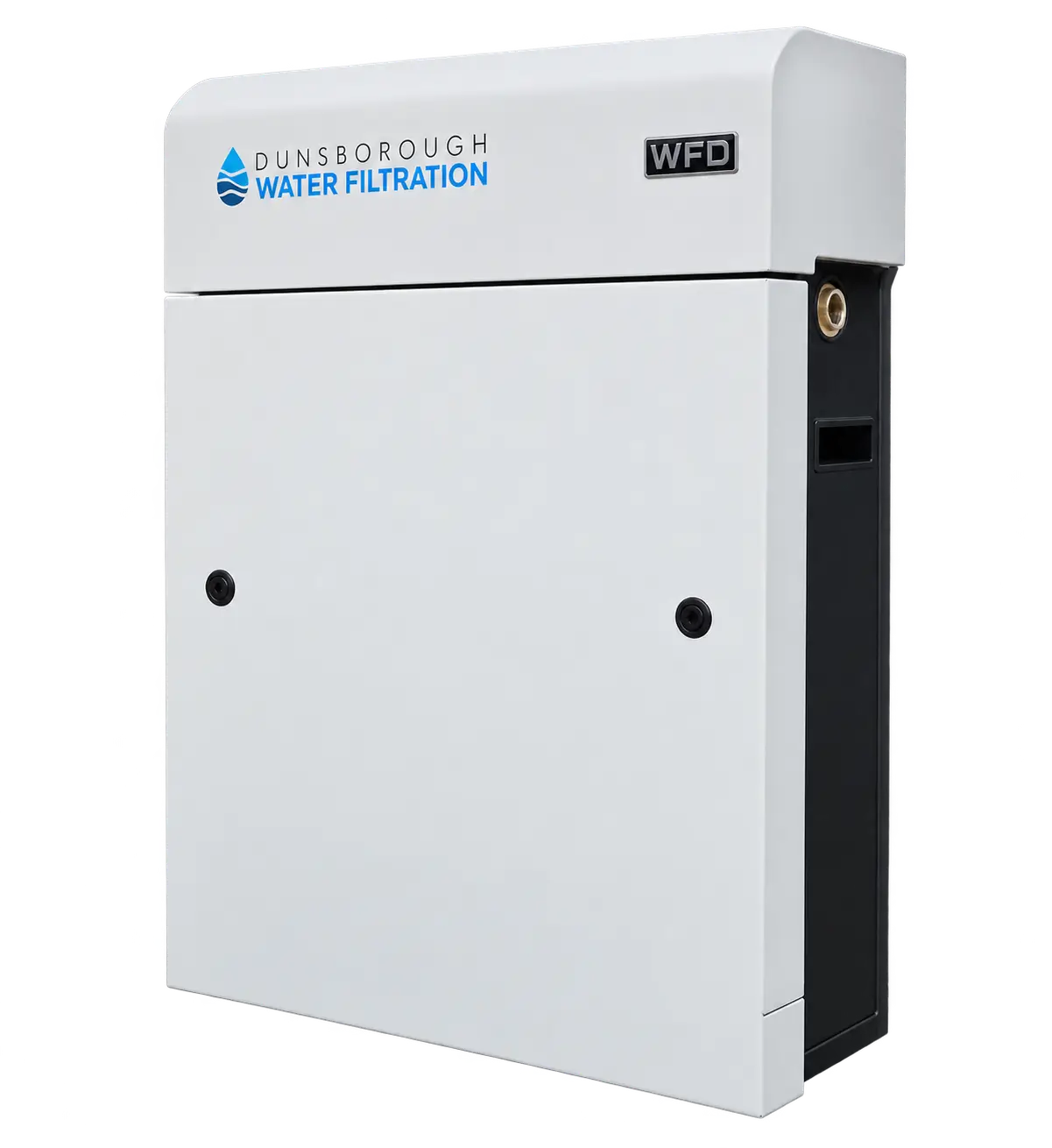

The Vortex Pro 3 treats your water where it enters the home, so the water you drink, cook with, shower in and clean with is filtered at the source.
The cabinet is the constant: three full-size 20 x 4.5 inch housings, a pressure gauge on every stage and a 10 year warranty. What goes inside is chosen to suit your water, from the standard three-stage kit through to the HydroFlow Advanced kit, with fine filtration down to 0.22 micron and built-in help against scale, or DuraScale-X for homes where limescale is the main problem.
Choose your filter kit
Every Vortex Pro 3 takes a three-cartridge kit, matched to your water. Most South West homes start with the standard Vortex-Pro kit, and most of our customers step up to the HydroFlow Advanced kit or DuraScale-X. These are the three kits we fit in almost every home.
Vortex-Pro Standard Kit
Pleated sediment, grooved GPSS depth filter and 0.5 micron coconut carbon. Removes silt, dirt and rust and reduces chlorine, chloramine, taste and odour, heavy metals, pesticides, disinfection by-products and PFAS/PFOA, while keeping calcium and magnesium in the water. The everyday whole-home kit.
HydroFlow Advanced Kit
Our most popular upgrade. Pleated sediment and grooved GPSS depth filtration protect the Hydro-Flow 0.22 micron cartridge, which takes microplastics and the finest particulate out of the water, handles chlorine, chloramine and taste, and carries anti-scale media that helps reduce calcium and limescale build-up. Full breakdown further down this page.
DuraScale-X Kit
Swaps the third cartridge for DuraScale-X anti-scale media that converts hardness minerals into harmless micro-crystals, so they stop bonding to hot water elements, pipes and fixtures. No salt, no brine, no backwashing, no power, and the minerals stay in your water. Read our guide to water softening without a softener.
Other filter kit options
WFD make eight 20 inch cartridge kits for the Vortex Pro 3 and we stock the full range: Vortex-Pro, HydroFlow Advanced, DuraScale-X, Vortex-Pro Anti-Scale, HydroFlow Dual Carbon, AB Rainwater, PH-PLUS and Tannin Reduction. The full table is below. We recommend the right kit after looking at your water, and the kit can be changed at any filter replacement as your needs change.
Filter kits for the Vortex Pro 3
Eight full-size three-cartridge kits, selected to match the source water. Which one you need depends on your water and what you want it to do. The three we fit most are marked. We will have your kit on record from installation, and it can be changed at any filter replacement.
| Kit (20 inch) | Cartridges | Rating | Best for |
|---|---|---|---|
| Vortex-Pro (standard) We fit most | P + G + C | 0.5 µm | Scheme water, everyday whole-home filtration. Our starting point for most homes. |
| HydroFlow Advanced We fit most | P + G + HF | 0.22 µm | Our most popular upgrade: finest filtration for microplastics, with anti-scale media that helps reduce calcium and limescale |
| DuraScale-X We fit most | G + C + DSX | Scale control | Dedicated salt-free scale protection for hot water systems, appliances and glass |
| Vortex-Pro Anti-Scale | P + G + ASC | 0.5 µm | Scheme water with scale problems |
| HydroFlow Dual Carbon | G + C + HF | 0.22 µm | Three carbon zones for the heaviest chlorine, chloramine and taste problems. Available on request. |
| AB Rainwater | ABP + G + C | 0.5 µm | Tank and rainwater, paired with UV (see Ultra V Pro 3) |
| PH-PLUS | G + C + PHP | pH correction | Low pH (acidic) supplies, typically bore or tank |
| Tannin Reduction | Tannin | 0.5 µm | Tannin-stained (tea-coloured) water |
P = pleated sediment, G = grooved GPSS depth filter, C = coconut carbon, HF = Hydro-Flow, ASC = anti-scale, ABP = AB rainwater pleated, DSX = DuraScale-X, PHP = pH-Plus. All kits are full-size 20 x 4.5 inch three-cartridge sets, replaced as a set at each service. We stock the full range; the three marked are the ones we fit in almost every home.
Inside the HydroFlow Advanced kit
One system. Three cartridges. Fine filtration and scale protection in one kit.
The HydroFlow Advanced kit is the upgrade most of our customers choose. The first two cartridges do the heavy lifting on sediment: a pleated sediment filter takes out visible dirt, sand and rust, and the grooved GPSS depth filter catches the finer particles behind it. That protects the Hydro-Flow 0.22 micron cartridge in the third housing, which does three jobs at once: fine filtration for microplastics and the finest particulate, carbon treatment for chlorine, chloramine, taste and odour, and anti-scale media that helps stop calcium and limescale bonding to hot water elements, glass and tapware.
The order matters. Each cartridge protects the one after it, which is why the kit is replaced as a complete set and fitted in sequence. The result is water that is noticeably softer on skin, glass and appliances, without a water softener and without stripping the calcium and magnesium out of it.
Treatment scope: sediment, dirt, rust, silt and suspended particulate; chlorine, chloramine, taste, colour and odour; fine particulate and microplastics to nominal 0.22 micron; PFAS and PFOA and other adsorbable organic contaminants; VOCs, pesticides, herbicides and disinfection by-products such as THMs; calcium and limescale build-up.
Pleated sediment filter
The first line of defence. A pleated sediment filter with a large surface area that removes visible dirt, sand, rust, pipe scale and suspended particulate before the water reaches the finer cartridges, so they last the full service interval.
Grooved GPSS depth filter
A grooved depth filter that catches the finer sediment the pleated cartridge lets through. The grooved exterior adds usable surface area and spreads the loading, which keeps flow up and protects the Hydro-Flow cartridge from clogging early.
Hydro-Flow 0.22 micron
The working cartridge of the kit. Fine filtration down to a nominal 0.22 micron for microplastics and the finest particulate, carbon treatment for chlorine, chloramine, taste and odour, and anti-scale media that helps reduce calcium and limescale build-up on hot water systems, glass and tapware.
How the three kits we fit most compare
| Vortex-Pro Standard | HydroFlow Advanced | DuraScale-X | |
|---|---|---|---|
| Cartridges | Pleated sediment, grooved GPSS, 0.5 micron coconut carbon | Pleated sediment, grooved GPSS, Hydro-Flow 0.22 micron | Grooved GPSS, 0.5 micron coconut carbon, DuraScale-X |
| Fine filtration | 0.5 micron | Nominal 0.22 micron | 0.5 micron |
| Chlorine, chloramine, taste and odour | Yes | Yes | Yes |
| PFAS, pesticides, VOCs and disinfection by-products | Yes | Yes | Yes |
| Microplastics and finest particulate | Down to 0.5 micron | Down to 0.22 micron | Down to 0.5 micron |
| Scale protection | No | Anti-scale media helps reduce calcium and limescale build-up | Yes, dedicated salt-free scale control for hot water systems and appliances |
| Fluoride | Not designed to remove fluoride | Reduces fluoride early in the cartridge life, but that capacity drops off well before the 12 month change | Not designed to remove fluoride |
| Typical service interval | Approx. 12 months | Approx. 12 months | Approx. 12 months |
| Best for | Everyday whole-home filtration on scheme water | Homes that want the finest filtration plus help with scale, in one kit | Homes where limescale on glass, taps and hot water systems is the main problem |
All three keep the calcium and magnesium in your water and are designed for treated scheme water. The only reliable way to remove fluoride from drinking water is a reverse osmosis unit at the kitchen tap. We can supply one if fluoride is a concern for you.
Designed for treated scheme water
The nominal 0.22 micron rating describes the fine-filtration capability of the Hydro-Flow pleated media. It is intended for fine particulate and microplastic reduction on treated scheme or town water. It is not a substitute for UV or another approved disinfection barrier on rainwater, bore or surface water, it is not a water softener, and it does not remove dissolved salts. If you are on tank or bore water, see the Ultra V Pro 3. Typical residential service interval is around 12 months; actual life depends on water quality, usage and cartridge loading, and the three gauges on the cabinet show when a change is due.
Removes the bad, keeps the good
Powerful contaminant removal without stripping the minerals your body needs.
Removes
Sediment, silt, dirt and rust
Up to 99% of chlorine, plus chloramine
THMs and other disinfection by-products (up to 98%)
PFAS, PFOS and PFOA and other forever chemicals
Pesticides, herbicides, VOCs and solvents
Heavy metals including lead and cadmium
99% of microplastics down to 0.22 micron (HydroFlow kits)
Hard water scale build-up, protecting appliances and hot water systems (DuraScale-X and HydroFlow Advanced kits)
Fluoride, for part of the cartridge life (HydroFlow kits). For full fluoride removal, ask us about reverse osmosis at the kitchen tap.
Keeps
Essential minerals such as calcium and magnesium
Naturally balanced, great tasting water
Minerals key to bone health
Minerals key to muscle function
Support for general wellbeing
Choose a colour that suits your home
Your Vortex Pro 3 cabinet can be finished in any of the 22 COLORBOND® steel colours below. Each is a durable, UV-stable powder-coat matched to the COLORBOND® palette, so the unit blends in with your walls, roofline or garden rather than standing out against them. Pick the colour that suits your home and we will have it finished to order.
Dover White- Surfmist
- Southerly
- Classic Cream
- Evening Haze
- Paperbark
- Shale Grey
- Dune
- Bluegum
- Windspray
- Gully
- Wallaby
- Pale Eucalypt
- Jasper
- Basalt
- Woodland Grey
- Ironstone
- Manor Red
- Deep Ocean
- Cottage Green
- Monument
- Night Sky
Colours shown are indicative and should be confirmed against a physical sample, as screen reproduction may vary. Custom colours are available on request. COLORBOND®, BlueScope and the colour names are registered trade marks of BlueScope Steel Limited.
Models & Specifications
| Vortex-Pro-III (20 inch) | |
|---|---|
| Dimensions (W x H x D) | 595 x 752 x 212 mm |
| Weight | 35 kg |
| Housings | 3 x 20 x 4.5 inch, full-flow, high-capacity |
| Inlet / outlet | 25 mm BSP, lead-free brass |
| Seals | Dual O-ring and compression |
| Operating pressure | 175 to 800 kPa (pressure limiting valve fitted above 800 kPa) |
| Temperature | 0 to 38 °C, cold line only |
| Gauges | One pressure gauge per stage |
| Service interval | Approx. 12 months, varies with water quality and usage |
| Finish | Powder-coated stainless steel cover, key-lock front panel, finished to order in 22 Colorbond-matched colours |
| Mounting | Freestanding, wall or frame mount |
| Warranty | 10 year full replacement warranty, lifetime support |
| Certification | WaterMark certified to AS 3497:2021 |
| Installation | Licensed plumber. Installed and serviced by Danny Tuffin, WA Plumbing Contractor PL8180 |
