This rural Dunsborough installation called for a filtration system designed specifically for homes relying on an alternative water supply.

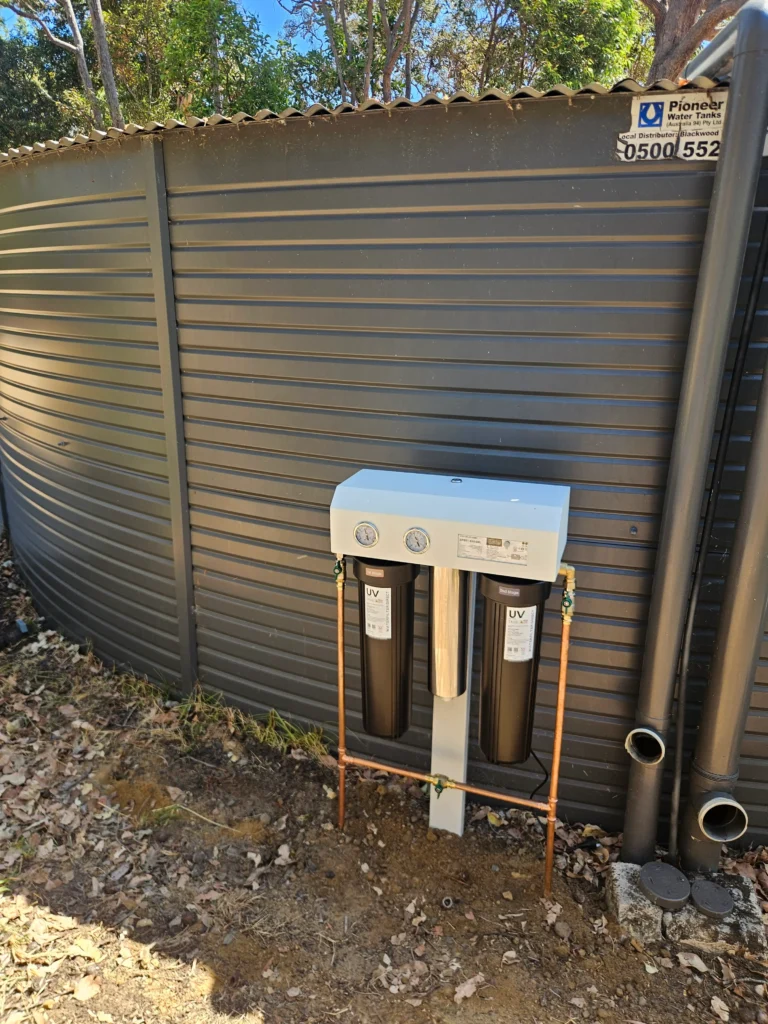

We installed an Ultra V Pro 3 whole-home water filtration and UV disinfection system alongside the property’s existing Pioneer water tank. The unit was positioned neatly against the tank wall, providing a compact installation while keeping the cartridges, pressure gauges and UV controls accessible for future servicing.
Filtration designed for rural water supplies
Tank and rainwater supplies can collect sediment, organic matter and microorganisms as water travels from the roof and gutters into storage. The Ultra V Pro 3 is designed for homes using tank, rainwater and bore water, combining filtration, UV disinfection and carbon treatment in one system.
The three stages work together to provide more complete water treatment:
- A 5-micron sediment filter helps capture silt, dirt and rust
- The central UV chamber uses a chemical-free process to reduce bacteria and other harmful pathogens
- A 0.5-micron activated coconut carbon filter improves taste, clarity and odour while reducing a broad range of unwanted contaminants
UV protection with built-in monitoring
The stainless steel UV chamber is positioned between the two large filter housings and treats the water before it passes through the final carbon stage. The system also includes a 12-month UV monitoring controller with a countdown timer and audible alarm, making it easier for the homeowners to keep track of ongoing maintenance.
For this installation, the system’s twin pressure gauges, isolation valves and service drain were kept readily accessible. The exposed layout also makes future cartridge changes and inspections straightforward.
Cleaner water throughout the property
By treating the water before it is distributed around the home, the Ultra V Pro 3 provides the household with filtered and UV-treated water for drinking, cooking, showering and everyday use.
It is a practical choice for this rural Dunsborough property, helping improve the quality, taste and clarity of the tank water while providing greater confidence in the water supplied throughout the home.
Do you rely on tank, rainwater or bore water? Contact us about a whole-home water filtration system suited to your property and water supply.
